Conveyor-Fed Straw Crusher
Conveyor-Fed Straw Crusher

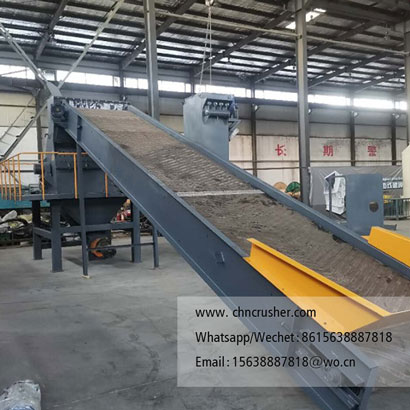

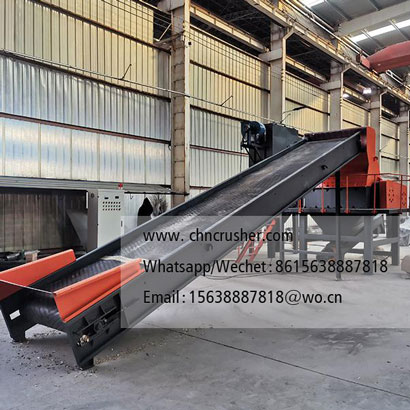

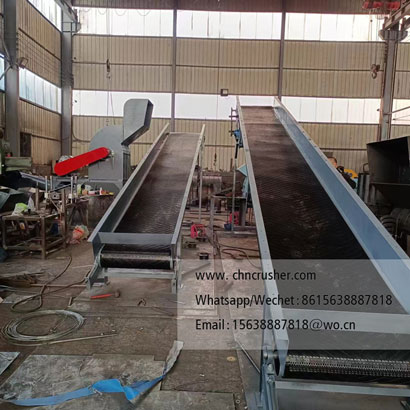

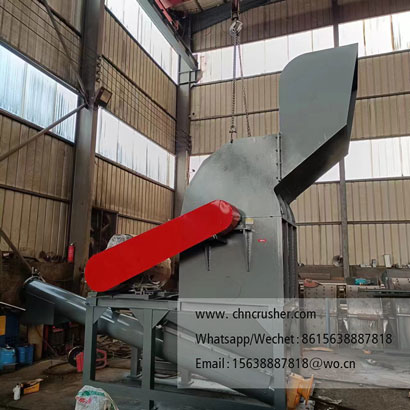

info:The conveyor belt feeding straw crusher uses a conveyor belt for feeding and a spiral crushing device, resulting in high crushing efficiency. Multiple specifications are available.
mode: Electric motor
power:75-220kw
output:2.5-15t/h
8615638887818
video Conveyor-Fed Straw Crusher
Performance parameters
Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

Conveyor-Fed Straw Crusher

model Production capacity(t/h) power(kw) Size after crushing(mm) Rotational speed(r/min) Equipment weight(kg) Device dimensions(m)
GRT550 0.3-1 18.5-22 3-20 2800 680 1.8*1.2*1
GRT660 0.5-1.5 30-37 1080 2.1*1.4*1.3
GRT870 1.5-3 45-55 2600 1660 2.3*1.5*1.5
GRT980 2-4 55-75 2250 2.4*1.6*1.7
GRT1010 2.5-5 75-90 2200 2830 2.5*2.6*2.6
GRT1310 3-9 90-110 3860 3*2.8*3
GRT1510 4-10 110-150 4920 3.2*3*3.3
GRT1812 5-15 150-220 2000 6560 3.6*3*3.5
Note: The product is constantly being updated, upgraded and improved. In case of any differences between the accompanying pictures, feature descriptions and performance parameters and the actual model, the physical product shall prevail.
